90mm Molded Fiber Cold Cup Dome Lid
The 90mm Molded Fiber Cold Cup Dome Lid is a food-contact-grade, PFAS-free alternative to conventional plastic cold drink lids. Designed for compatible paper cups and molded fiber cups, it combines a raised dome profile, central drinking or straw opening, press-fit rim, and splash-reducing structure for professional beverage service.
- 90mm nominal lid size
- Raised dome profile for additional headspace
- Central drinking or straw opening
- Press-fit closure for compatible cup rims
- PFAS-free as standard
- White and natural colors available
- 50 lids per PE bag and 1,000 lids per carton
Product Introduction
|
|
|
The 90mm Molded Fiber Cold Cup Dome Lid is developed for beverage businesses seeking a molded fiber alternative to conventional plastic dome lids. It is suitable for cafés, beverage chains, takeaway counters, catering operations, and packaging distributors using compatible paper cups or molded fiber cups.
The raised profile creates additional clearance above the cup rim, while the central opening supports drinking or straw access. Its press-fit edge is designed to engage with a correctly matched cup rim and help reduce accidental loosening during normal handling.
Cup-rim dimensions, rolled-rim profiles, material thicknesses, and manufacturing tolerances can vary between suppliers. Buyers should therefore confirm compatibility using cup specifications, technical drawings, or physical cup samples before bulk production.
Product Specifications
| Product Name | 90mm Molded Fiber Cold Cup Dome Lid |
|---|---|
| Nominal Diameter | 90mm |
| Lid Structure | Raised cold cup dome lid |
| Material | Food-contact-grade molded pulp fiber |
| Compatible Cups | Compatible paper cups and molded fiber cups |
| Cup Rim Compatibility | Must be confirmed before bulk ordering |
| Closure Type | Press-fit |
| Opening | Central drinking or straw opening |
| Separate Vent Hole | No separate vent hole is shown on the standard product |
| Available Colors | White and natural |
| Material Temperature Tolerance | Up to 100°C under specified test and intended-use conditions; this model is primarily designed for cold beverages |
| PFAS Status | PFAS-free as standard |
| Unit Weight | Customizable |
| Standard Packing | 50 pcs/PE bag, 20 bags/carton, 1,000 pcs/carton |
Key Features
- Raised dome profile: Provides additional space above the cup rim for suitable cold beverage presentations.
- Central opening: Supports drinking or straw access without requiring a separate vent hole on the standard product.
- Press-fit closure: Designed for efficient fitting during normal foodservice operations.
- Secure rim engagement: Helps reduce accidental loosening when correctly fitted to a compatible cup.
- Splash-reducing structure: Helps minimize splashes during tilting or light movement without making an absolute leak-proof claim.
- Wet-strength performance: A water-resistant additive helps resist premature softening during intended use.
- Stable nesting: Supports compact storage, export packing, and efficient handling.
- Easy separation: Nested lids can be separated individually during beverage service.
- PFAS-free as standard: Supports buyer requirements for molded fiber foodservice packaging without intentionally added PFAS.
Common Applications
- Cold coffee and specialty coffee beverages
- Iced tea and chilled tea drinks
- Cold takeaway beverages
- Café and beverage chain orders
- Restaurant takeaway service
- Catering and event beverage service
- Private-label beverage packaging programs
- Paper cup and molded fiber cup supply programs
Why Choose the 90mm Molded Fiber Cold Cup Dome Lid?
The 90mm Molded Fiber Cold Cup Dome Lid is designed for buyers who require a raised profile, paper-based appearance, and practical compatibility with cold beverage cup systems. Its dome structure provides more upper clearance than a flat lid and supports a distinctive takeaway beverage presentation.
The fitting structure of the 90mm Molded Fiber Cold Cup Dome Lid can be evaluated or adjusted according to the buyer’s cup-rim dimensions and tolerances, making it suitable for established cup systems and customer-specific packaging projects.
B2B Buyers
The 90mm Molded Fiber Cold Cup Dome Lid is suitable for:
- Coffee shops and café chains
- Cold beverage brands
- Restaurant and foodservice chains
- Paper cup manufacturers
- Molded fiber cup manufacturers
- Food packaging distributors
- Importers and wholesale packaging suppliers
- OEM, ODM, and private-label packaging buyers
Buyer Decision Guide
Compatibility of the 90mm Molded Fiber Cold Cup Dome Lid cannot be confirmed by nominal diameter alone. The cup-rim outside diameter, rolled-rim profile, material thickness, production tolerance, and lid engagement structure can all affect the final fit.
Before confirming a bulk order, buyers should provide one or more of the following:
- Physical cup samples
- Cup-rim outside diameter
- Rolled-rim cross-section or technical drawing
- Cup material and wall structure
- Required fitting, removal, and handling performance
Compatibility testing should evaluate lid engagement, resistance to loosening, removal convenience, splash reduction, and performance during tilting or light movement. KGP does not describe this product as completely leak-proof or spill-proof.
PE Bag and Outer Carton Export Packing

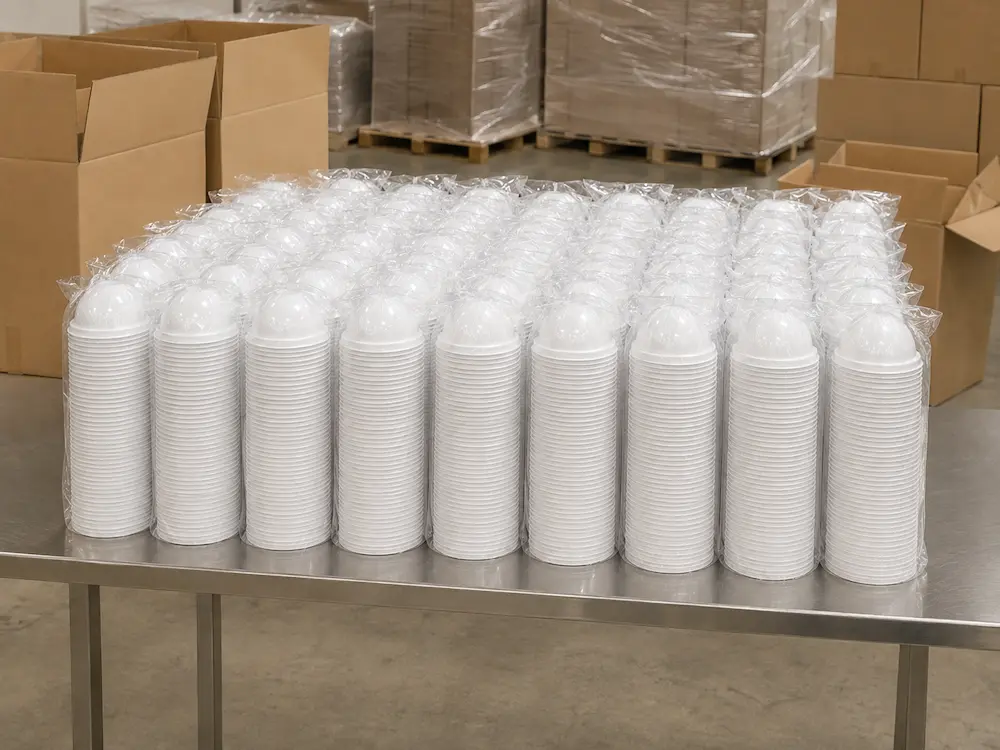

The 90mm Molded Fiber Cold Cup Dome Lid is nested in stable stacks to support compact storage, efficient handling, and easy separation. Each stack contains 50 lids and is packed in one PE bag. Twenty PE bags are packed in each export carton, providing a total of 1,000 lids per carton.
- 50 lids per nested stack
- 1 stack per PE bag
- 20 PE bags per export carton
- 1,000 lids per carton
- Custom PE bags, export cartons, and outer carton shipping marks are available
OEM, ODM and Private Label Support
KGP supports OEM and ODM development for the 90mm Molded Fiber Cold Cup Dome Lid. The lid dimensions, cup-rim fitting structure, central opening, material formulation, molded logo, matching paper cups, tooling, and export packaging can be developed or adjusted following technical evaluation.
- Custom lid diameter and height
- Fit development based on cup-rim dimensions, rolled-rim profiles, and manufacturing tolerances
- Custom central-opening position, size, and shape when required
- White and natural molded fiber color options
- Embossed or debossed logo customization
- Adjustable fiber composition and material formulation
- Custom PE bags, export cartons, and shipping marks
- Matching paper cup design, sampling, development, and supply
- Customer-specific cup-lid mold development
The standard opening structure meets most purchasing requirements. Sample charges, mold ownership, formulation details, MOQ, and mass-production lead time are confirmed according to the individual project.
New mold development and trial samples generally require more than seven days after drawing confirmation. The final schedule depends on the structure and technical requirements.
Why Choose KGP?
KGP manufactures the 90mm Molded Fiber Cold Cup Dome Lid for B2B beverage packaging programs requiring compatibility evaluation, export packing, and customization support.
- Manufacturer-focused B2B molded fiber packaging supply
- Experience in molded pulp cup lids and matching beverage packaging
- Food-contact-grade molded fiber materials
- PFAS-free formulation as standard
- Applicable food-contact and destination-market documents available according to product specifications
- Custom cup-rim fitting and mold development
- Matching paper cup development, sampling, and supply
- OEM, ODM, molded logo, formulation, and export packaging support
- Standardized nested packing for international transportation
Common Mistakes to Avoid
When purchasing the 90mm Molded Fiber Cold Cup Dome Lid, buyers should verify the complete cup-rim structure instead of relying only on the nominal diameter.
- Ordering by nominal diameter alone: Two cups described as 90mm may have different rolled-rim profiles and manufacturing tolerances.
- Skipping compatibility testing: A sample fitting test should be completed before a large production order.
- Assuming universal compatibility, the lid is intended for correctly matched cup rims, not every 90mm cup on the market.
- Confusing the central opening with a vent hole: The standard product has a central drinking or straw opening, with no separate vent hole shown.
- Using an unsupported leak-proof claim: The structure helps reduce splashes but is not promoted as completely leak-proof.
- Ignoring the intended application, this dome model is positioned primarily as a cold beverage lid.
- Using unsupported disposal claims: Recycling and composting depend on formulation, local facilities, collection systems, and applicable certification requirements.
FAQ
What cups fit the 90mm Molded Fiber Cold Cup Dome Lid?
It is designed for compatible paper cups and molded fiber cups with a suitable 90mm cup-rim profile. Final compatibility should be confirmed using cup dimensions, technical drawings, or physical samples.
Is this dome lid suitable for cold beverages?
Yes. The 90mm Molded Fiber Cold Cup Dome Lid has a raised dome structure designed primarily for cold coffee, iced tea, and other takeaway cold beverages.
What type of opening does the dome lid have?

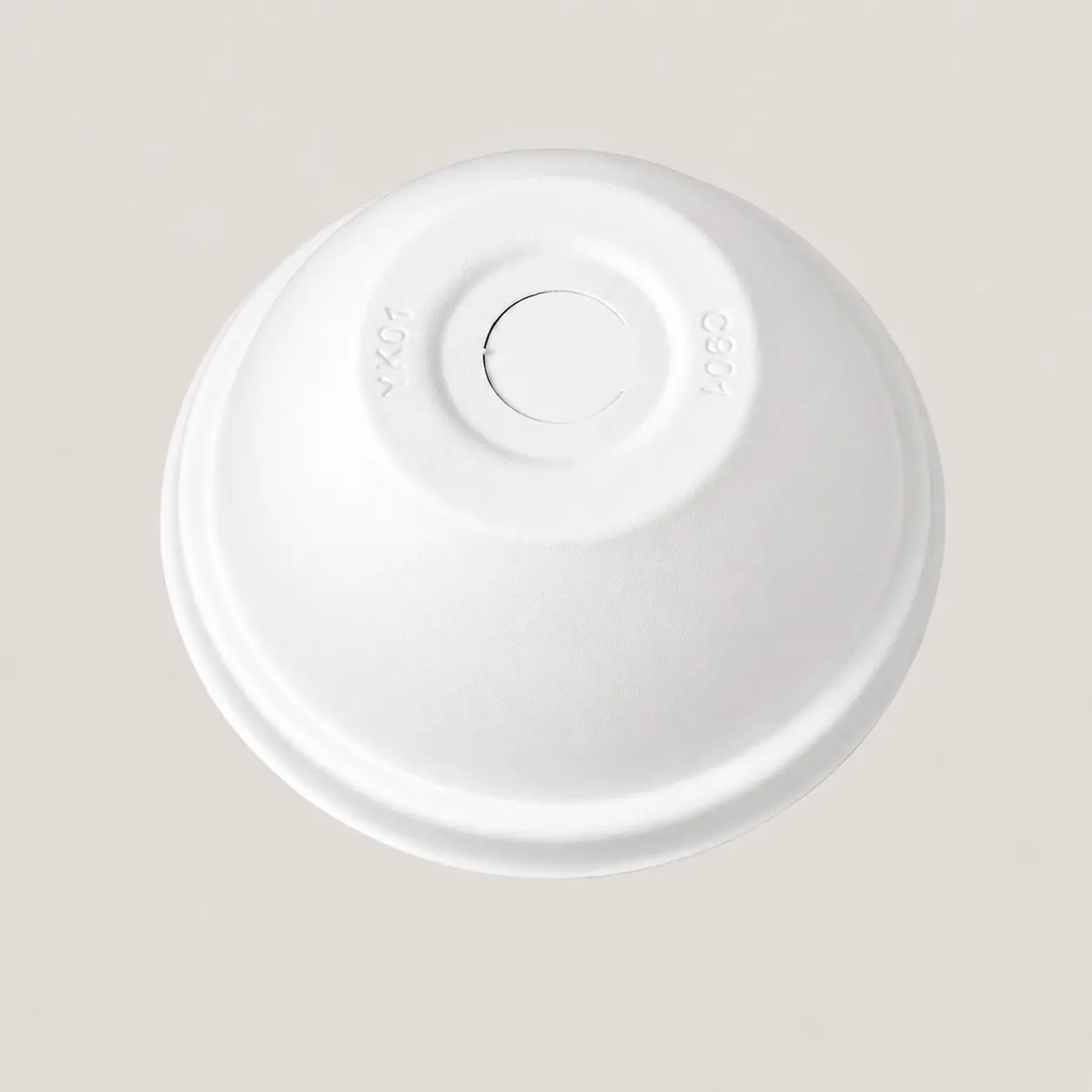

The lid has a central opening designed for drinking or straw access. No separate vent hole is shown on the standard product. The opening position, size, and shape can be adjusted for special projects when technically required.
Is the lid leak-proof?
No absolute leak-proof claim is made. When correctly fitted to a compatible cup, the press-fit and splash-reducing structure help minimize leakage during tilting or light movement.
Is the molded fiber lid PFAS-free?
Yes. PFAS-free production is provided as standard for this molded fiber cup-lid series.
Is it suitable for food contact?
Yes. It is made from food-contact-grade molded fiber material. Applicable food-contact and destination-market documents can be provided according to the selected product specification and market requirements.
What colors are available?
White and natural molded fiber colors are available. Other custom colors are not normally offered for this product type.
Can the lid size and cup-rim fit be customized?
Yes. The lid diameter, height, and fitting structure can be adjusted according to the paper cup or molded fiber cup rim dimensions, rolled-rim profile, and manufacturing tolerances.
Can KGP add a custom logo?
Yes. Embossed or debossed logos can be incorporated into the molded lid structure, subject to technical evaluation.
Can KGP develop matching paper cups?
Yes. KGP supports matching paper cup design, development, sampling, and supply according to the customer’s cup-lid system requirements.
What is the standard packaging?
Each nested stack contains 50 lids and is packed in one PE bag. Each export carton contains 20 PE bags, providing a total of 1,000 lids.
Is the product recyclable or compostable?
It may be recyclable where suitable local collection and recycling systems accept the material. It may also be compostable under appropriate conditions, subject to product formulation, local facilities, and applicable certification requirements.
What is the MOQ?
The MOQ is confirmed with the sales team according to the selected specification, customization requirements, and order conditions.
Final Note
The 90mm Molded Fiber Cold Cup Dome Lid is designed for compatible cold beverage cups requiring a raised profile, molded fiber construction, and a central drinking or straw opening. Because nominal cup diameter alone cannot guarantee a secure fit, cup-rim dimensions or physical samples should be evaluated before bulk production.
Send KGP your cup-rim dimensions, technical drawing, or physical cup sample to evaluate the 90mm Molded Fiber Cold Cup Dome Lid and request samples, pricing, MOQ, and production lead time.
